Temperature Thermal Cutoffs Fuse Circuit Protection 100℃ / 240℃

$28.00

TCO 250VAC 10A 100C (212F)

TCO 250VAC 10A 240C (464F)

For product availability, please contact us first.

  • Check Mark Prices are in Trinidad and Tobago Dollars TTD
  • Check Mark In-Store Purchase ONLY!
  • Check Mark To get in touch with us, visit our Contact/ Location Page
  • Check Mark For ALL of our items, we provide a Layaway Plan
Our Payment Options
  • linx logo payment
  • TTD dollar notes

Circuit Protection Temperature Cutoffs Thermal Fuse 100℃ and 240℃ DF100S and DF240S

Circuit Protection Thermal Fuse 100 and 240 Degrees Celsius Thermal Cutoffs 250V Circuit Cut-Off Temperature.

Currently available in two temperature types 100℃ and 240℃.

High-Quality Circuit Temperature Thermal Cutoffs Fuse.

Rated Voltage: 250V AC; Rated Current: 10A

The Rated Functioning Temperature in stock are: 100℃ (DF100S) and 240°C (464°F) (DF240S)

Thermal Cut-offs Fuse in stock:

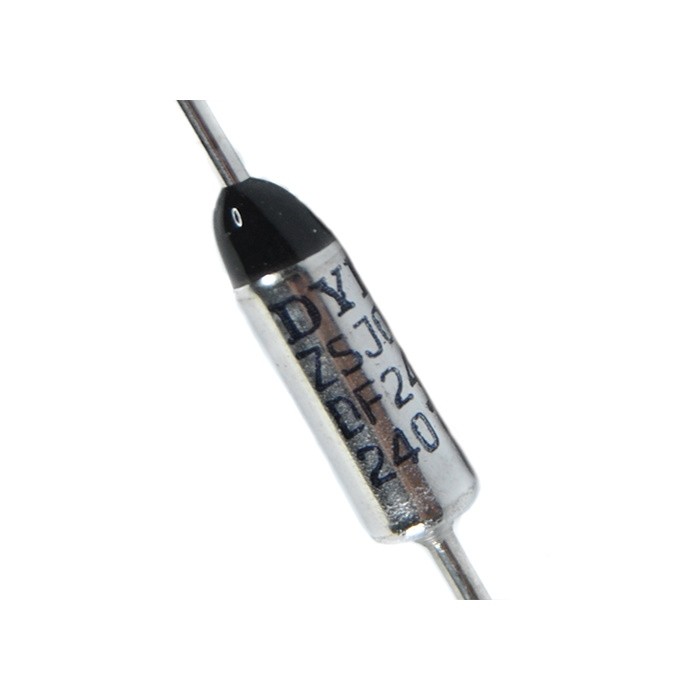

DF240S – The functioning Temperature is 240 Degrees Celsius and the Holding Temp is 200 Degrees Celsius. Markings on the fuse are “DYE TCO LSKS DF240S 240℃”

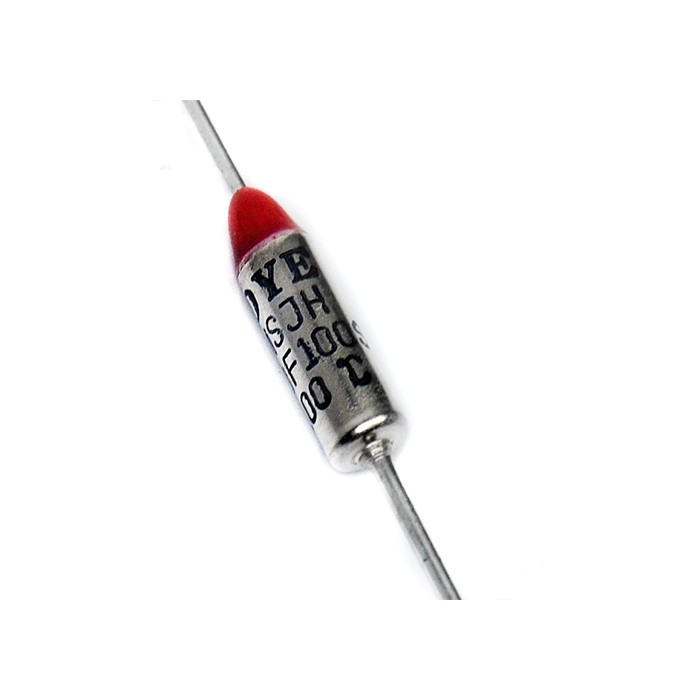

DF100S – The functioning Temperature is 100 Degrees Celsius and the Holding Temp is 78 Degrees Celsius. Markings on the fuse are “DYE TCO LYKS DF100S 100℃”

Function:

The appliance circuit is shut off when the temperature rises above the designated TF value due to an unforeseen malfunction. thermal fuse is cutoff that operates via one-time fusible link. It is single-use item with insulated leads for easier operation, but it cannot be reset and needs to be replaced when it fails or is triggered. This product requires expert knowledge to operate.

Voltage Rating

250V AC

Rated Operating Temperature

100℃ and 240℃

Current Rating (Amps)

10A
