Solar System Panel Kit with Bluetooth, Radio, Lights

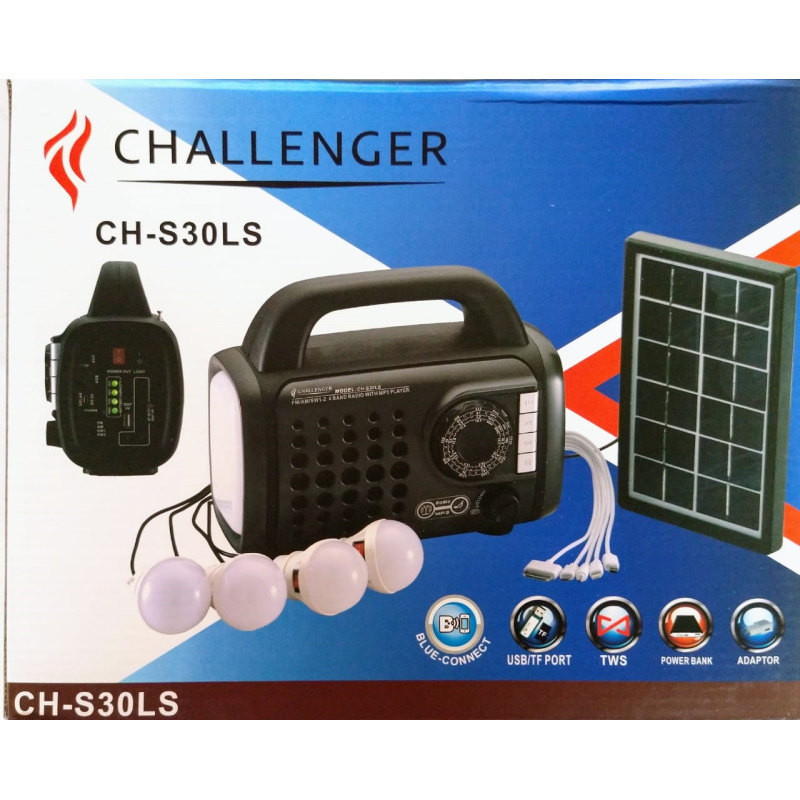

Challenger Mini Energy Solar Power System Panel Kit with Bluetooth, Radio, Lights

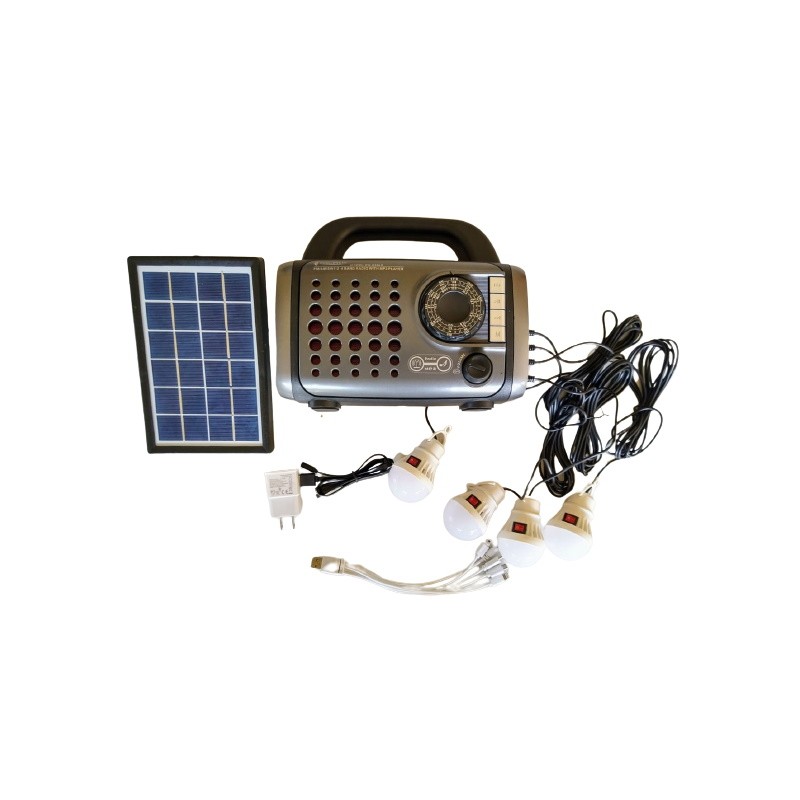

Mini Solar Power System Panel with emergency lights, Radio, Bluetooth player, Flash Drive Player, Memory card player, Charges mobile phones, torchlight, portable power bank for solar charging. Our Challenger Mini Solar Panel system is a must-have for your home, school or office, camping, places where there is no electricity, hiking, or hunting.

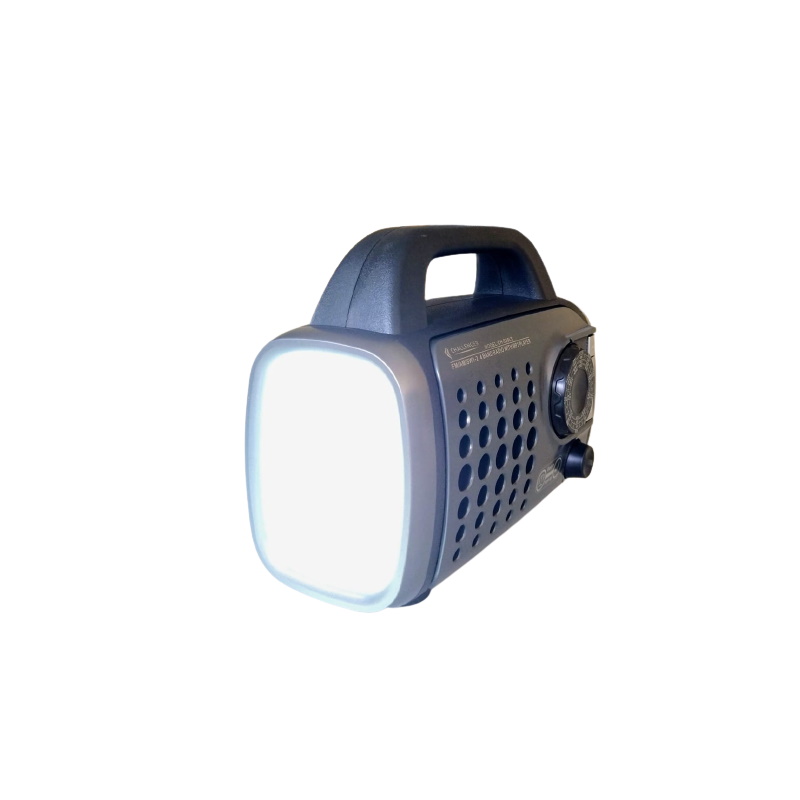

This solar energy panel system has enough power to charge a smartphone and has a built-in torchlight, portable power bank, and radio. It also includes USB cables for charging devices.

This off grid solar system has the following features listed below:

Solar Power for HOME RADIO OPERATION:
Turn on the power switch, is Bluetooth mode, press the MODE button, then is radio mode.
1. Choose bands: tune band switch, can choose AM, FM, SW1-2.
2. Turn the “TUNING” button to choose the required station
3. Adjust the antenna position to get the best receiving effect.



USB/TF OPERATION:
During the radio program is playing, insert a USB/TF card, and it will automatically switch to play from the USB/TF
card. You can press the NEXT&PREV buttons on the radio to select the music you need.



LITHIUM BATTERY:
How to use lithium battery
1. The unit built-in lithium battery, please note that the first time needs to charge for 8 hours.
2. Normally, If using a lithium battery, can operate the unit in the following time.
If used for USB/TF, it can last over 720 minutes
If used for RADIO, it can last over 720 minutes
In order to prolong the battery life and product normal use, please keep the charging time within 8 hours.



INTERNAL BLUETOOTH FUNCTION OPERATION
Turn on the volume, the unit will “BLUETOOTH MODE” then turn on the Bluetooth of a cellphone or another mobile device with Bluetooth function, start to search for a Bluetooth named “CW6685” and pair with it, after successful pairing, it will beep. Now cellphones or other mobile devices can play music through Bluetooth on the radio. You can select play and pause the music by pressing the NEXT/PREV/PLAY buttons on the radio or cellphone or other mobile devices. If you want to stop using the Bluetooth function just need to turn off the Bluetooth on your cellphone or other mobile devices.



TWS FUNCTION
After the phone and host1 are connected successfully, open host2 (same model) and enter Bluetooth mode to play the music. Please press the “▸II ” button for both (host 1 and host 2) for 2 seconds at the same time. After successfully paired (a prompt tone will rise on the speaker), it will begin stereo broadcasting.



SPECIFICATION:
Output power: 15W
Speaker: 10W 4ohms – 4″ speaker size
Noise rate: 245DB

Receiving performance index:
FM: 87-108 MHz
AM: 522-1710KHz
SW1-2: 3.2-22.0MHz

Sensitivity index: FM: 15db ±5db || AM: 85db ±5db || SW: 15db ±5db

 Noise rate: FM: ≥45db || AM: 235db || SW: ≥35db

NOTE: If replacing the old battery with a new one. The new battery should be used after fully recharged and activated.

Click here to see our Mini Solar Powered System Youtube Video.
