BNC Male Twist-on Coax Coaxial Connector RG59

$15.00

For product availability, please contact us first.

  • Check Mark Prices are in Trinidad and Tobago Dollars TTD
  • Check Mark In-Store Purchase ONLY!
  • Check Mark To get in touch with us, visit our Contact/ Location Page
  • Check Mark For ALL of our items, we provide a Layaway Plan
Our Payment Options
  • linx logo payment
  • TTD dollar notes

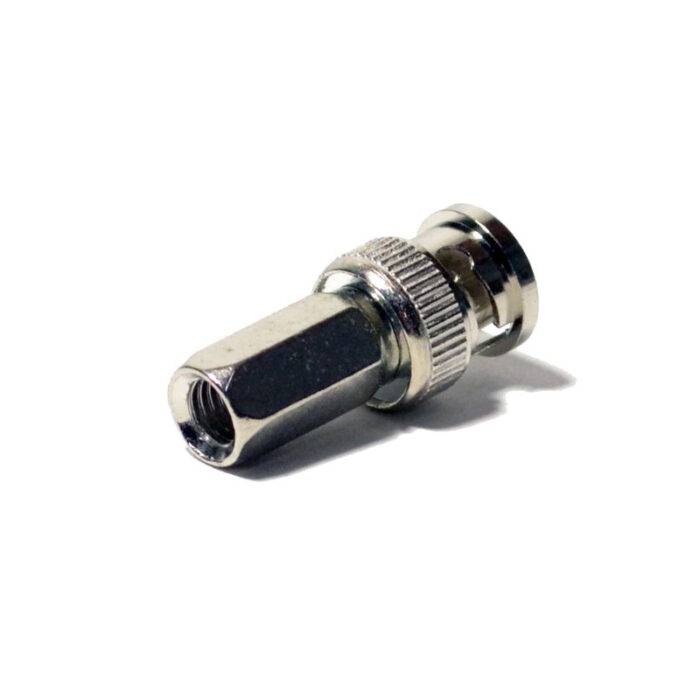

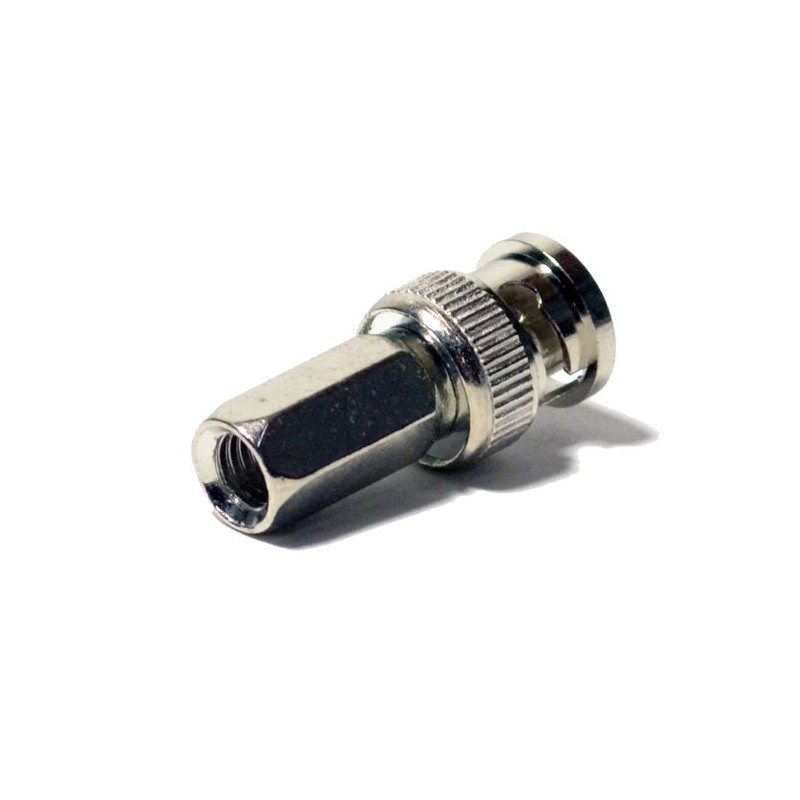

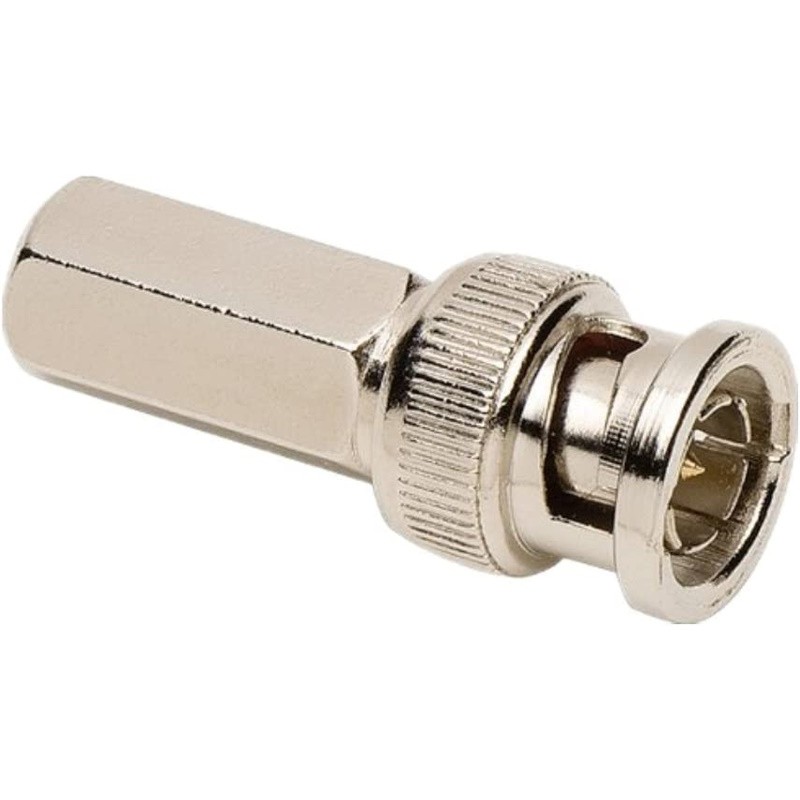

BNC Male Twist-on RG59 Connector for CCTV Coax Coaxial Security Cameras

BNC Male Twist-on Connector 75 Ohms, BNC Coax Connector locking mechanism, high tolerance fittings, with good quality adapters for RG59 cable connection. Use for CCTV System converting Male Twist-on Connector. Easy to use.

BNC connector male is Compact in design and convenient. Quality material also ensures durable and stable performance. Suitable for use with wire RG59 or RG6.



BNC male connector Contact resistance: Center Contact between inner conductors ≤ 1.5mΩ

Outer Contact between outer conductors ≤ 1mΩ

Insulation resistance: Insulation resistance ≥ 5000MΩ

RG59 or RG6 BNC connector Adapter type: BNC male to hexagonal connector

Impedance: 75 ohms

BNC Coax Connector Frequency range: DC 0~4GHz

We also stock different BNC connector types

We also sell the BNC Coupler to join Male BNC to BNC Male ends together.

Body/ Housing

Nickel-plated phosphor bronze

Contacts

Brass

Dimension

3.2 x 1.4cm/ 1.3" x 0.55" (L*D)

Frequency Range

DC 0~4GHz

Nominal Impedance

75 Ohms,

Female Thread Diameter

5.5mm/0.2"

Wiring type

RG59

Application

Adapters for RG59 cable connection
